24ch embedded dvr & HDMI output
Features:
Ø H.264 main profile compression algorithm ideal for standalone DVR
Ø Record Capacity: Support 24ch full CIF encode + 4ch simultaneously playback + extra stream
Ø Display: Support VGA and TV output simultaneously
Ø Operation Interface: very simple operation as windows and strong rightclick function menu.
Ø Mobile Monitor: Support iPhone,Blackberry,Android,Symbian and Windows mobile
Ø Wireless: Support USB 3G and WIFI wireless module,to free build your wireless surveillance
Ø Powerful SD card: Support SD card,max storage 32G,used for record,backup,snapshot function etc…
Ø Network: Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions, support WEB client, standalone client and SDK
Ø Device Port: Support 2 SATA ports,Max storage 2 x 2TB, 2 x USB2.0,very convenient operation for USB mouse,backup,DVD-RW,upgrade and so on.
Ø Support 15 kinds of languages such as English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish
Ø Customization: Support any individualtion customization and startup screen logo free replacement,customer can make your own surveillance products.
Ø Others: With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up
|
|
Model
|
9324M
|
|
System
|
Main processor
|
High performance embedded microprocessor HuaWei HI3520
|
|
Operating System
|
Embedded LINUX
|
|
|
System Resource
|
Support multi-channels realtime recording,playback,network remote operation and USB backup
|
|
|
Interface
|
User interface
|
GUI,on-screen menu tips
|
|
Display
|
1/4 screens
|
|
|
Video
|
Video standard
|
PAL 625 line,50 f/s;NTSC 525 line,60 f/s
|
|
Monitor quality
|
PAL,D1(704×576);NTSC,D1(704×480)
|
|
|
Playback quality
|
D1/HD1/CIF/QCIF
|
|
|
Encode capacity
|
600/720fps CIF
|
|
|
Motion detect
|
Zones:396(22*18)detection zones,Sensitivity:1-6(6 is highest)
Trigger recording,PTZ movement,tour,alarm,email,snapshot & FTP
|
|
|
Audio
|
Audio compression
|
G711A
|
|
Bidrectional Talk
|
Support
|
|
|
Record&Playback
|
Recode mode
|
Manual>Alarm>Video Detection>Continuous
|
|
Local Playback
|
1~4channels playback simultaneously
|
|
|
Search mode
|
Time/Date,Alarm,Motion Detection & exact search
|
|
|
Storage&Backup
|
Space occupation
|
Audio 28.8MB/H ;Video 25-450 MB/H
|
|
Record storage
|
Local HDD,Network and SD card
|
|
|
Backup mode
|
Network,USB movable HDD and USB DVD-RW
|
|
|

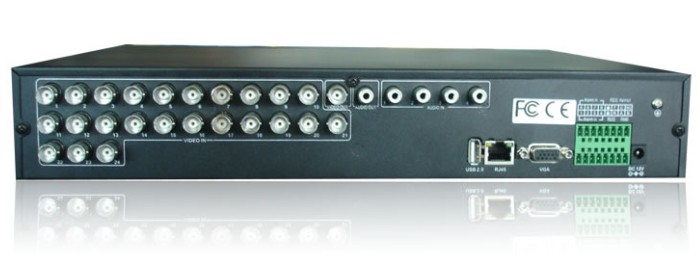

Port
|
Video input
|
24ch BNC
|
|
Video output
|
1ch BNC,1ch VGA output
|
|
|
Loop output
|
Optional
|
|
|
SD Card
|
NO
|
|
|
Audio input
|
4ch RCA
|
|
|
Audio output
|
1ch RCA
|
|
|
Alarm input
|
8ch
|
|
|
Alarm output
|
1ch
|
|
|
Network
|
RJ45 10M/100M/1000M
|
|
|
PTZ
|
Support almost PTZ protocols
|
|
|
USB
|
2*USB2.0
|
|
|
HDD
|
2x SATA port(Max 2 x 2048G）
|
|
|
Others
|
Power supply
|
12V/5A
|
|
Power consumption
|
<10W(not include HDD)
|
|
|
Working Temperature
|
0℃-＋55℃
|
|
|
Working Humidity
|
10%－90%
|
|
|
Atmosphere Pressure
|
86kpa－106kpa
|
|
|
Dimension
|
|
|
|
Weight
|
|
